T2846
Product No:14276-973
Clicks:
Last update:2010.11.03
   Product details

Motor Specification:

Dimension: ¢36X54(mm)

Shaft: ¢3.175X12.0(mm)

Weight: 180g

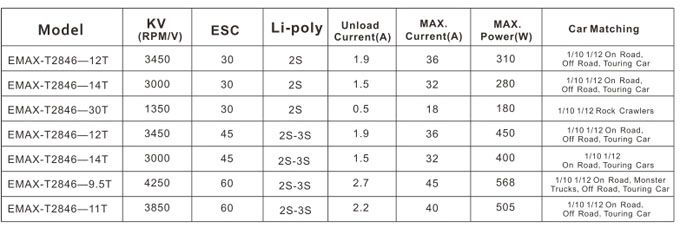

Product Parameters:



Features:

1.The front and bottom covers have been screwed up, anti-vibration, anti- impact,strengthening the motor.

2.Being made of 2-pole cylindrical rotor, forceful magnet steel, the motor has higher   rotation speed and torque.

3.Stator full-pitch-winding increasing the slot fill factor and stability of motor   efficiency.

4.Has a core of 380 class motor, outside appearance is as same as 540 class motor.

5.Bigger torque, Reduce the noise, High efficiency (>88%).

6.CNC Machined Aluminum Heatsink Can, high accuracy.

7.Product pass :  CE    FC   ROHS Certifications.
