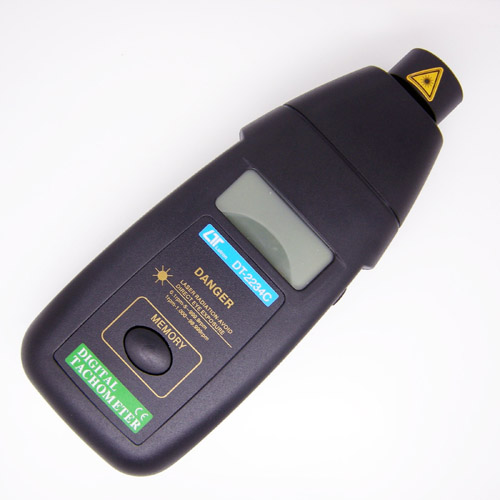

2234C Tachometer
Product No:164127-780
Clicks:
Last update:2010.08.09
   Product details

Specifications:
Display:                                    5-digit LCD, height of digit: 18mm
Measuring range:                     2.5-99999 RPM
Resolution:                               0.1RPM(2.5~999.9RPM), 1RPM(over 1000RPM)
Accuracy:                                  ±(0.05%+1character)
Responding time:                     0.5 second(over 120RPM)
Measuring range choise:          Automatic
Effective distance:                  50mm - 500mm
MAX current:                           40mA
Data record:                           automatically record Max.,Min. & final measurement results
Time base:                              6MHz quartz crystal
Time base accuracy:               10X10-6(0℃~50℃)
Battery:                                    4.5V (3 cell) AAA battery
Dimension:                               184X76X30mm
