Nanohawk  X

Parameter

Diagonal wheelbase (without paddles)

120mm

Maximum size of the aircraft (without paddles)

100*100*35mm

Aircraft weight (without battery)

41±2g

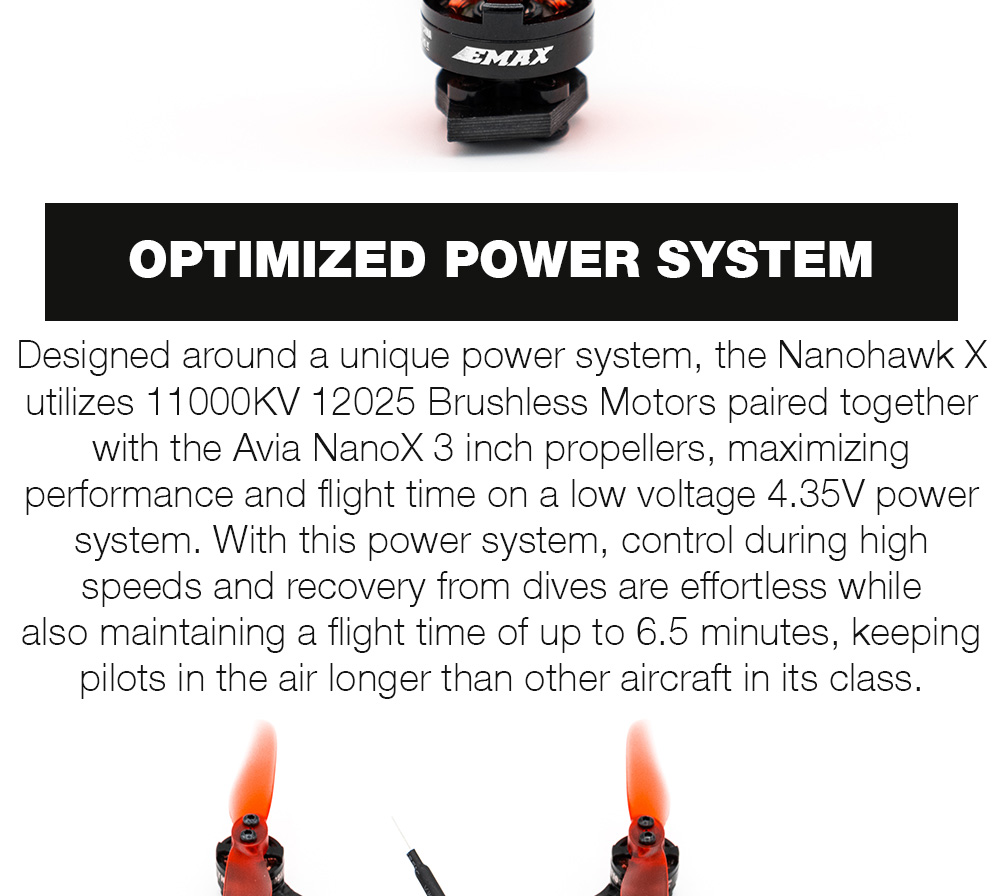

Motor

TH12025 11000KV

Propeller

Avia Tinyhawk 1609 3 inch 2 blade propeller

Main Flight Controller

F4（MATEKF411RX firmware）

4 in one 5A ESC

SPI RX receiver（Compatible with Frsky remote

control D8/D16 mode）

Camera

RunCam Nano 3 Camera

Transmitter

0-25-100-200mW Adjustable frequency 37CH,

Support SmartAudio

Ham radio license is required in North America.

Battery

1 Cell 450 mAh HV lipo battery
